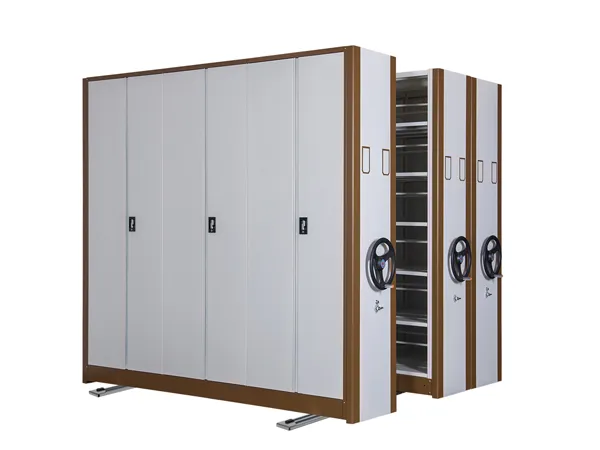

Mobile Archive Shelving

Mobile archive shelving, also known as mobile shelving systems or high-density mobile storage, is a type of shelving solution designed to maximize storage capacity while optimizing space utilization in archive rooms, libraries, offices, and other storage facilities. Unlike traditional static shelving, mobile archive shelving is mounted on tracks or rails and can be moved laterally along the floor, allowing access to specific aisles when needed.

We're here to help: Easy ways to get the answers you need.

Mobile archive shelving consists of the base,column,shelf,hanging panel,top panel,guard plate,door plate,transmission mechanism,track,dust proof and etc.

When want to move it,just operate the handles,then the shelving could move right and left.Each line also with the braking device,the side line could be locked,then the whole set could become to a modular.

The height, width and depth of mobile archive shelving could be customize.

Track:Use non-welded cylindrical pin device connection;

Frame body: Including base,column, beam,hanging plate, layer panel etc.

Rolling wheel:high quality 45# steel forging,CNC lathe precision maching,high concentricity.

Transmission device: including chain, gear, handle, bearing, roller, lock.

Features of Mobile Archive Shelving

Space Efficiency

Mobile shelving systems can significantly increase storage capacity compared to static shelving, as they eliminate the need for fixed aisles between shelves. By compacting the shelves together, they utilize available space more efficiently.

Customizable Configuration

Mobile archive shelving can be tailored to fit the specific storage requirements of the facility. The system's layout, shelf heights, and overall dimensions can be customized to accommodate various types of archived items or file sizes.


Mobile shelving systems provide easy access to stored items. Users can move the shelves apart to create an aisle, allowing them to access the desired items directly. This reduces the need for walking between aisles and speeds up retrieval times.


Some mobile archive shelving systems can be equipped with locking mechanisms to secure specific aisles or the entire system, ensuring the confidentiality and protection of sensitive or valuable items.

Smooth and Silent Movement

High-quality mobile shelving systems are designed to move smoothly and quietly along the tracks, allowing users to operate them with minimal effort and noise.

Safety Features

Mobile archive shelving systems typically include safety features, such as anti-tip mechanisms and sensors to prevent collisions or accidents while shelves are in motion.

Flexibility and Expansion

The modular design of mobile shelving allows for easy reconfiguration and expansion to adapt to changing storage needs over time.

Organizational Efficiency

The compact nature of mobile archive shelving helps maintain a neat and organized storage space, enhancing inventory management and retrieval processes.


Some mobile shelving systems are designed with ergonomic handles and mechanisms, making it easy for users to move the shelves effortlessly.


Utilizing a high-density mobile shelving system can contribute to a more sustainable storage solution by reducing the need for additional floor space and energy consumption.

How the Mobile Archive Shelving Works

Each row of the entire row group is equipped with a locking mechanism, so before opening the operation, the master lock must be opened first, and then the switch of the locking mechanism can be turned to the “on” position to perform the shaking operation.

The operation of the handle: the handle is an automatic holding and decoupling mechanism, as long as you put down the handle of the crank and slowly shake it to the gear, you can shake it with force, so that the frame can be opened to the required distance, and the file can be taken and read.

Closing operation: After completing the file reading work, turn the switch lever of the locking mechanism to the “on” position, shake the handle to move each row of file racks to the closed position, and then turn the switch of the locking mechanism to “off” Position, lock the master lock, and that’s it.

When closing the locking device, if it is difficult to close, you can gently shake the handle so that the lock switch can be smoothly turned to the “off” position. During operation, avoid forcibly closing the handle to avoid damage to the handle.
